Yealink MVC300

Introducing the Yealink MVC300 video conferencing package.

A complete video conferencing solution, using Microsoft Teams or Skype for business, for focus and small meeting rooms. The package includes everything needed to interact, connect and collaborate with internal and external users.

£2,638.80 inc.Vat | £2,199.00 ex.VAT

SKU: MVC300 Categories: ,
Eclipse Digital Media - Digital Signage Shop - Icon - conference

VIDEO CONFERENCING
Eclipse Digital Media - Digital Signage Shop - Icon - video

CAMERA
Eclipse Digital Media - Digital Signage Shop - Icon - Windows OS

WINDOWS PC
Eclipse Digital Media - Digital Signage Shop - Icon - interactive

TOUCH PANEL
Eclipse Digital Media - Digital Signage Shop - Icon - microphone

WIRELESS SPEAKERPHONE
Eclipse Digital Media - Digital Signage Shop - Icon - all-in-one solution

COMPLETE SOLUTION

COMPLETE VIDEO CONFERENCING SOLUTION

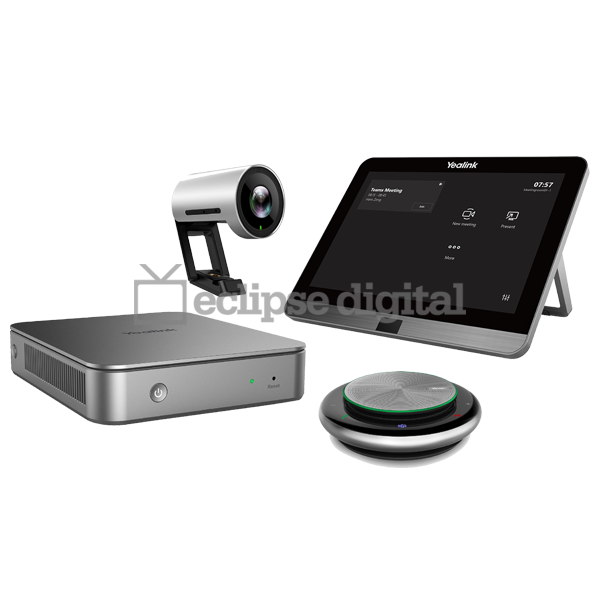

The Yealink MVC300 offers a complete solution to video conferencing, using either Microsoft Teams or Skype for business. The solution consists of a camera, mini Windows PC, PCAP touch panel, and a wireless speakerphone, making it perfect for focus and small meeting rooms.

CAMERA

The Yealink UVC30 camera delivers a sharp, smooth and stable 4K video experience. The auto framing and 120° field of view recognises and frames all participants in stunning 4K resolution.

MCORE

The Yealink MCore is a mini Windows PC used to connect all the components together and display the video onto your meeting room screen. The camera is connected to the PC through USB, whilst the touch panel can be connected using a CAT5e ethernet cable.

MTOUCH PANEL

The MTouch panel is an 8″ PCAP touchscreen used within this complete solution to create and accept meeting invites. The panel needs to be connected to the MCore, and can be done using a RJ45 Cat5e cable

MICROPHONES

The CP900 is suited to small meeting rooms by combining both microphones and speakerphones. With six-microphone beamforming, it supports 360° voice pickup, meaning it doesnt have to be moved when people speak. Each attendee can be heard smoothly and clearly thanks to the Yealink noise proof technology, to drown out unwanted noise such as writing and typing.

Eclipse Digital Media - Digital Signage Shop - Yealink MVC300

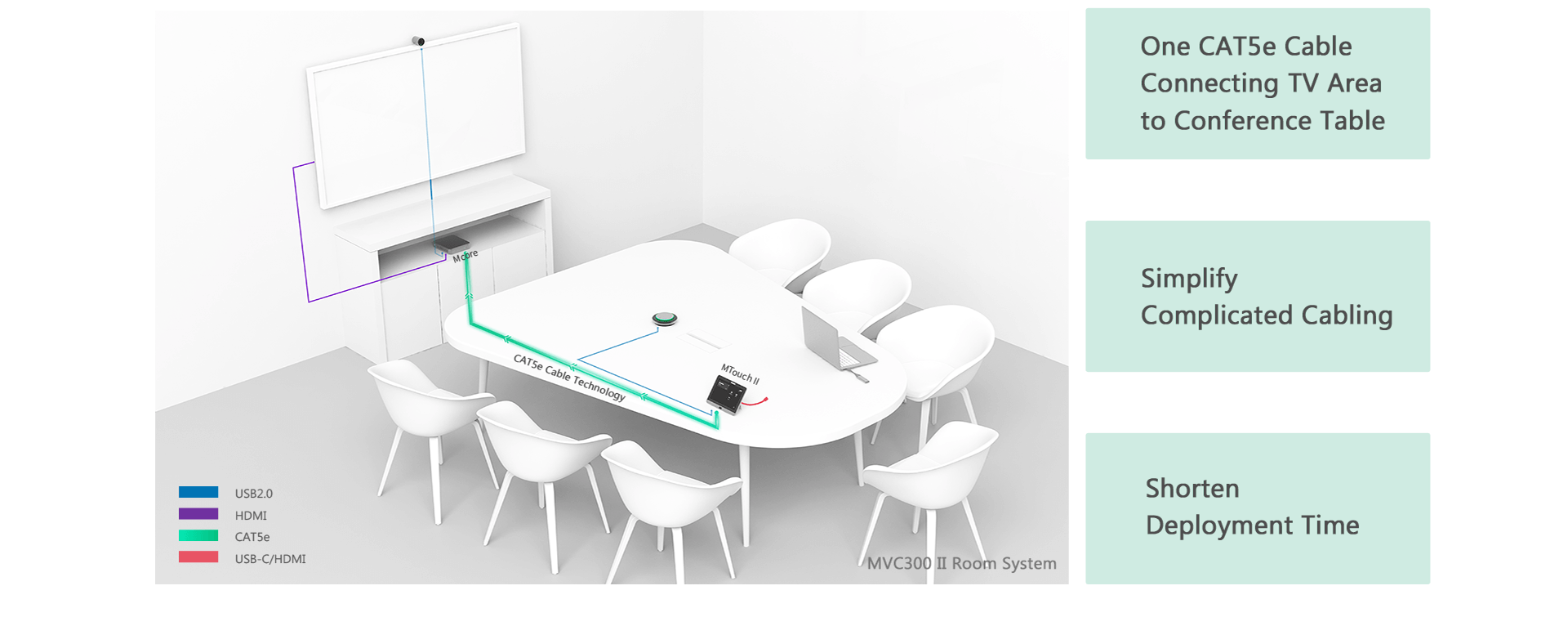

Eclipse Digital Media - Digital Signage Shop - Yealink MVC300 setup

DOWNLOADS

SPEC SHEET

Yealink MVC300

QUICK START GUIDE

Quick start guide

SPECIFICATIONS

MCore CPU

8th-gen Intel QUAD-CORE i5-8265U

MCore memory

8GB

MCore connectivity

2 x HDMI, 4 x USB3.0, 2 x RJ45

MTouch diagonal size

8"

MTouch resolution

1280×800

MTouch connectivity

1 x USB-A, HDMI, USB-C, 3.5mm audio jack

Camera zoom

3x optical

Camera resolution/ frame rate

4K/ 60FPS

Camera field of view

120°

Microphone voice pickup range

2m (6.5ft)

Operating system

Windows 10 IoT
