Samsung Smart Signage UHD 75″ Tizen Display

Introducing the Samsung SSP QM75R tizen display.

Display your digital signage content in ultra-high definition on this slimline device. Content can be uploaded by a USB stick or register the device with the cloud based software, embed signage to create and update remotely.

Eclipse Digital Media - Digital Signage Shop - Icon - high bright

HIGH VISIBILITY
Eclipse Digital Media - Digital Signage Shop - Icon - uhd quality

UHD QUALITY
Eclipse Digital Media - Digital Signage Shop - Icon - all-in-one solution

ALL-IN-ONE SOLUTION
Eclipse Digital Media - Digital Signage Shop - Icon - maintenance

EASY INSTALLATION
Eclipse Digital Media - Digital Signage Shop - Icon - thermometer

TEMPERATURE CONTROL
Eclipse Digital Media - Digital Signage Shop - Icon - 24/7 operating time

24/7 COMMERCIAL GRADE

ALL-IN-ONE SOLUTION

The Samsung SSP QM65R is an all in one solution for your digital signage and has the ability to handle any business need in a slim, captivating display. The all in one display with embedded MagicInfo player, powered by Tizen, allows content to be uploaded and updated remotely using embed, a cloud based digital signage software, or manually using a USB stick and the plug and play feature.

HIGH VISIBILITY

The 500nit, non glare panel combined with the cutting edge UHD upscaling technology delivers perfect 4K UHD (3180×2160) quality content to ensure best-in-class picture.

EASY INSTALLATION

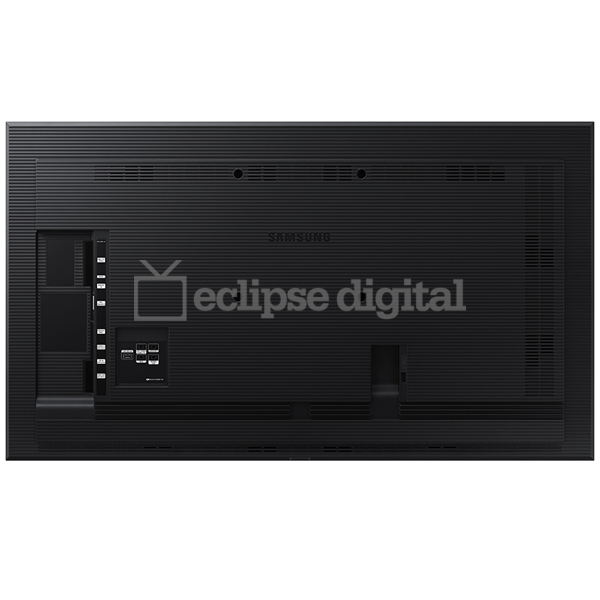

The all-new symmetric design of the QMR range simplifies wall mounting and insures an easy, seamless installation. The slim depth display along with side power outlet and new cable guide feature all contribute to a clean finish.

Eclipse Digital Media - Digital Signage Shop - Samsung smart signage QMR series tizen display
Eclipse Digital Media - Digital Signage and AV Solutions - embed signage Digital Signage Software

ADDITIONAL SOFTWARE

Get the most complete digital signage package by registering this device with embed. The cloud based software lets users take control of every aspect of their content with the ability to schedule, publish and update remotely.

  • Create powerful and engaging content via the ‘WYSIWYG‘ editor
  • Schedule content to play under criteria such as day, date, time, tags, weather and more
  • Manage devices via an easy to use online dashboard
  • Enhance content with plugins and widgets such as weather, twitter and rss feeds at no additional cost
  • And much, much more…

Get started with a Free 28 day trial of embed.

DOWNLOADS

TECHNICAL DRAWING

SPECIFICATIONS

Weight 38 kg
Dimensions 1681 × 50 × 960 mm
Diagonal size

75"

Display area

1650 x 930mm

Operating time

24/7

Brightness

Resolution

UHD 4K (3840×2160)

Viewing angle

178°

Aspect ratio

16:9

Contrast ratio

4000:1

Connectivity

DisplayPort, DVI, HDMI, RJ45, RS232, USB, WiFi

Audio input/ output

Audio socket (3.5mm)

Speakers

10W

Power consumption

230 (w)

Operating temperature

0°C to 40°C

Operating system

Tizen 4.0

Internal memory

8GB

VESA

400 x 400mm

Additional software

embed (annual licence), No additional software
