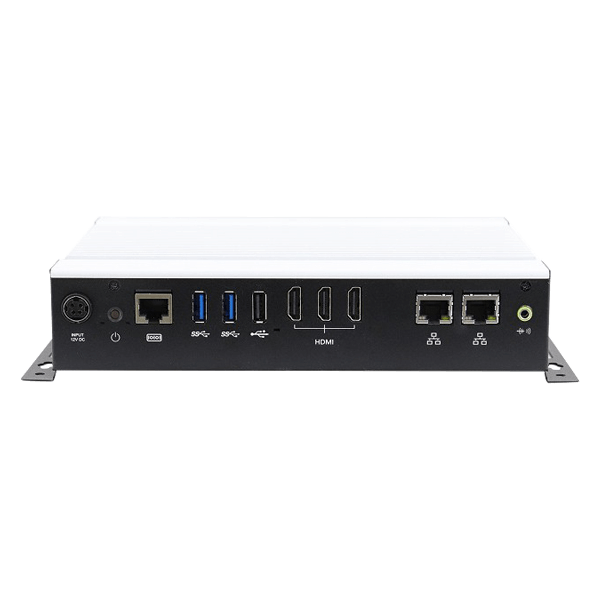

iBase SI-323-N – 3 output digital signage media player

The iBase SI-323-N is a multi output, digital signage Windows media player.

The 3 HDMI outputs allow you to show content across upto 3 screens, in full HD definition, making it perfect for digital menu boards and video wall configurations.

SKU: SI-323-N Categories: ,
Eclipse Digital Media - Digital Signage Shop - Icon - multi screen

3 x HDMI OUTPUTS
Eclipse Digital Media - Digital Signage Shop - Icon - HD quality

FULL HD TO ALL OUTPUTS
Eclipse Digital Media - Digital Signage Shop - Icon - maintenance

BUILT FOR PURPOSE
Eclipse Digital Media - Digital Signage Shop - Icon - 24/7 operating time

24/7 COMMERCIAL GRADE
Eclipse Digital Media - Digital Signage Shop - Icon - Windows OS

WINDOWS OS
Eclipse Digital Media - Digital Signage Shop - Icon - all-in-one solution

ALL-IN-ONE SOLUTION

ALL-IN-ONE SOLUTION

The integrated Windows 10 operating system allows content to be uploaded and updated remotely using embed, a cloud based digital signage software, offering a complete all-in-one solution.

MULTI-OUPUT

The multi-output media player allows you to show content across upto 3 screens from one piece of hardware. The 3 HDMI outputs and iBASE’s multiple-display matrix technology shows full HD on every screen. Using the embed software you can use the screens separately for individual content or combine the screens into one canvas for more engaging, takeover content.

AWARD WINNING TECHNOLOGY

Alongside the multiple-display matrix, for flexible configuration, resolution settings and bezel adjustment, the iSMART technology features power on/off scheduling and intelligent OS recovery to reduce maintenance cost and enhance system stability.

Eclipse Digital Media - Digital Signage Shop - iBase SI-323-N - 3 output digital signage media player
Eclipse Digital Media - Digital Signage and AV Solutions - embed signage Digital Signage Software

ADDITIONAL SOFTWARE

Get the most complete digital signage package by registering this device with embed. The cloud based software lets users take control of every aspect of their content with the ability to schedule, publish and update remotely.

  • Create powerful and engaging content via the ‘WYSIWYG‘ editor
  • Schedule content to play under criteria such as day, date, time, tags, weather and more
  • Manage devices via an easy to use online dashboard
  • Enhance content with plugins and widgets such as weather, twitter and rss feeds at no additional cost
  • And much, much more…

Get started with a Free 28 day trial of embed.

DOWNLOADS

SPEC SHEET

SI-323-N

TECHNICAL DRAWING

SPECIFICATIONS

Weight 1.5 kg
Dimensions 216 × 45 × 164 mm
Operating time

24/7

CPU type

AMD Ryzen™ Embedded R1606G 2.6GHz/3.5GHz

CPU socket

FP5 BGA package

Chipset

AMD integrated SoC

Internal memory

32GB

Graphics

Next-Gen AMD Radeon™ HD GPU integrated

Connectivity

HDMI, RJ45, USB, WiFi

Operating temperature

0℃ to 45℃

Operating system

Windows 10 64-bit

Certification

CCC, CE, cULus, FCC class B

Expansion slot

None, 4G, WiFi & Bluetooth

Additional software

embed (annual licence), No additional software
