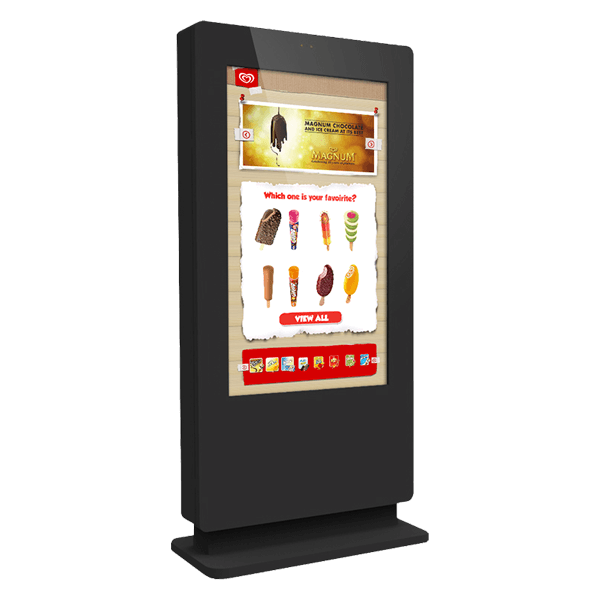

55″ Interactive Outdoor Freestanding PCAP Touch Totem

Introducing the 55″ Outdoor freestanding PCAP touch totem..

Upload full screen images or videos via a USB stick to the built in Android media player or register the device with the cloud based software, embed signage to create and manage your digital signage content remotely.

3 year warranty

For bulk ordering, please get in touch for pricing on +44 (0)8450 944954

Clear
Eclipse Digital Media - Digital Signage Shop - Icon - outdoor

OUTDOOR IP65 RATED
Eclipse Digital Media - Digital Signage Shop - Icon - interactive

PCAP TOUCH
Eclipse Digital Media - Digital Signage Shop - Icon - Android media player

INTEGRATED ANDROID MEDIA PLAYER
Eclipse Digital Media - Digital Signage Shop - Icon - all-in-one solution

ALL-IN-ONE SOLUTION
Eclipse Digital Media - Digital Signage Shop - Icon - outdoor totem maintenance

EASY MAINTENANCE
Eclipse Digital Media - Digital Signage Shop - Icon - 24/7 operating time

24/7 COMMERCIAL GRADE

ALL-IN-ONE SOLUTION

The internal HD Android media player allows content to be uploaded and updated remotely using embed, a cloud based digital signage software, or manually using a USB stick and the plug and play feature.

OUTDOOR TOUCH TOTEM

Designed to withstand the elements and protected against all weather conditions, thanks to their IP65 rated steel enclosure. The toughened glass front and IK10 rated displays can cope with any damage that may occur in public areas. All controls and inputs are hidden, so they are not accessed by passers by and waterproof coating is placed on all internal circuits and connectors.

State of the art PCAP (projected capacitive) technology provides the most responsive and sensitive touch experience. PCAP is not affected by dust or debris on the screen, and being sandwiched between two layers of protective glass to prevent phantom touches, it ensures ultimate accuracy with upto 10 touch points.

EASY MAINTENANCE

The internal locker, can be used to mount any external media player or PC, is accessible from the front with the use of the included key. The front of display opens up and kept in place using the hydraulic pump arms, meaning any maintenance can be done by a single person.

Eclipse Digital Media - Digital Signage Shop - Outdoor freestanding pcap touch totem
Eclipse Digital Media - Digital Signage and AV Solutions - embed signage Digital Signage Software

ADDITIONAL SOFTWARE

Get the most complete digital signage package by registering this device with embed. The cloud based software lets users take control of every aspect of their content with the ability to schedule, publish and update remotely.

  • Create powerful and engaging content via the ‘WYSIWYG‘ editor
  • Schedule content to play under criteria such as day, date, time, tags, weather and more
  • Manage devices via an easy to use online dashboard
  • Enhance content with plugins and widgets such as weather, twitter and rss feeds at no additional cost
  • And much, much more…

Get started with a Free 28 day trial of embed.

SPECIFICATIONS

Weight 204 kg
Dimensions 960 × 203 × 2032 mm
Diagonal size

55"

Display area

680 x 1209mm

Footprint

990 x 500mm

Operating time

24/7

Brightness

Resolution

HD (1920×1080)

Viewing angle

178°

Aspect ratio

16:9

Contrast ratio

5000:1

Connectivity

HDMI, RJ45, RS232, USB, VGA, WiFi

Power consumption

430 (w)

Operating temperature

-20°C to 50°C

Operating system

Android 4.2.2

Internal memory

6GB

Touch functionality

PCAP (projected capacitive) touch technology

Touch points

10

Enclosure protection

IP65 Rating

Impact protection

IK10 Rating

Additional software

embed (annual licence), No additional software
