22″ PCAP Touchscreen monitor

Introducing the 22″ PCAP Touchscreen.

This 22″ interactive touchscreen monitor uses the most responsive and sensitive touch technology. For a fully integrated all-in-one solution, this monitor can be purchased with a slot-in Windows PC.

3 year warranty

For bulk ordering, please get in touch for pricing on +44 (0)8450 944954

Clear
SKU: WP22A2 Category:
Eclipse Digital Media - Digital Signage Shop - Icon - interactive

PCAP TOUCH
Eclipse Digital Media - Digital Signage Shop - Icon - 10 point touch

UPTO 10 TOUCH POINTS
Eclipse Digital Media - Digital Signage Shop - Icon - Windows OS

OPTIONAL WINDOWS OPS PC
Eclipse Digital Media - Digital Signage Shop - Icon - all-in-one solution

ALL-IN-ONE SOLUTION
Eclipse Digital Media - Digital Signage Shop - Icon - integrated speakers

INTEGRATED SPEAKERS
Eclipse Digital Media - Digital Signage Shop - Icon - 24/7 operating time

24/7 COMMERCIAL GRADE

PCAP TOUCHSCREEN

State of the art PCAP (projected capacitive) technology provides the most responsive and sensitive touch experience. A sensor grid is sandwiched between the cover glass and LCD panel, which detects a touch and the co-ordinates of that touch point. PCAP is not affected by dust or debris on the screen, and allows upto 10 touch points.

OPTIONAL WINDOWS OPS PC

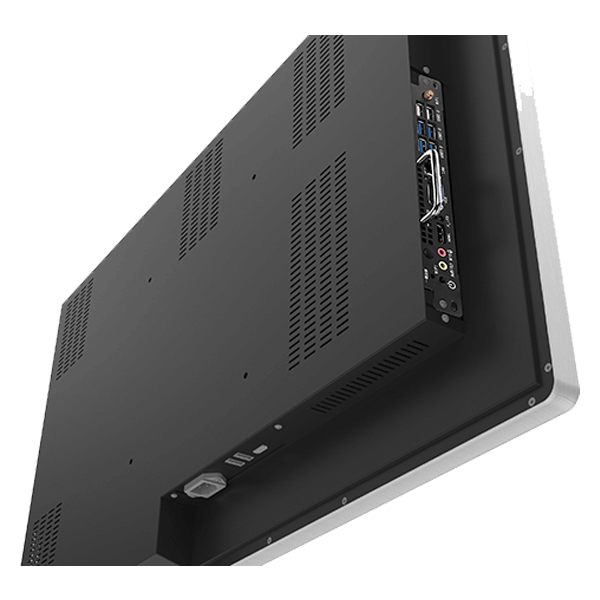

These screens are open-framed touch monitors, allowing for external devices to be connected and ideal for system integrators. However, if you are looking for a fully integrated all-in-one interactive solution, then the optional Windows OPS PC accomplishes this. The PC is inserted into the built-in slot, with no cables required. It is then secured in place with the hex security screw to also prevent damage.

There are two options for the slot-in Windows PC, being the cost-effective, economical OPS-E3 or the more powerful, premium OPS-P4.

COMMERCIAL GRADE

Along with the glass being tempered, making it more durable, these screens are designed to be used in public areas. The robust but lightweight aluminium enclosure houses a 500nit IPS panel which can be mounted in either landscape or portrait orientation. The commercial grade panel also has the ability to be in constant use 24/7 for over 70,000 hours and has being treated with a special oleophobic coating, to make the glass more resistant to oily residue left by fingerprints.

Eclipse Digital Media - Digital Signage Shop - PCAP touchscreen monitor
Eclipse Digital Media - Digital Signage and AV Solutions - embed signage Digital Signage Software

ADDITIONAL SOFTWARE

Get the most complete digital signage package by registering this device with embed. The cloud based software lets users take control of every aspect of their content with the ability to schedule, publish and update remotely.

  • Create powerful and engaging content via the ‘WYSIWYG‘ editor
  • Schedule content to play under criteria such as day, date, time, tags, weather and more
  • Manage devices via an easy to use online dashboard
  • Enhance content with plugins and widgets such as weather, twitter and rss feeds at no additional cost
  • And much, much more…

Get started with a Free 28 day trial of embed.

SPECIFICATIONS

Weight 6 kg
Dimensions 536 × 53 × 329 mm
Diagonal size

22"

Display area

267 x 475mm

Operating time

24/7

Brightness

Resolution

HD (1920×1080)

Viewing angle

178°

Aspect ratio

16:9

Contrast ratio

1000:1

Connectivity

HDMI, USB

Audio input/ output

Audio socket (3.5mm)

Speakers

2W, 5Ω

Power consumption

35 (w)

Operating temperature

0°C to 40°C

Touch functionality

PCAP (projected capacitive) touch technology

Touch points

10

VESA

100 x 100mm

OPS-E3

Intel Core i3-4000M CPU, 4GB DDR3 RAM, 128GB Internal Storage, Intel HD 4600 Graphics, Windows 7, 8, 10 & Linux OS, 64-bit, USB x 6, LAN, HDMI, DisplayPort, Dual-band 5GHz/ 2.4GHz 802.11n/ac WiFi, 203x119x30mm

OPS-P4

Intel Core i5-8259U CPU, 8GB DDR3 RAM, 256GB Internal Storage, Intel HD 655 Graphics, Windows 7, 8, 10 & Linux OS, 64-bit, 3840×2160 max resolution supported, USB x 4, LAN, HDMI, Dual-band 5GHz/ 2.4GHz 802.11n/ac WiFi, 203x119x30mm

Optional Windows PC

None, OPS-E3, OPS-P4

Additional software

embed (annual licence), No additional software
